3) WRENCHES AND SOCKETS, especially 10mm, 12mm and 14mm.

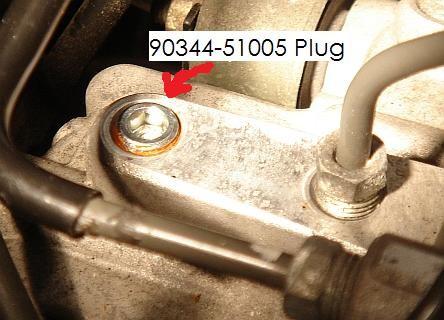

4) (1) 10mm x1.0 pitch x 10mm long bolt or OEM PLUG.
5) (2) 10K ohm Resistors, 1/2 watt (radio shack, ~$1)
6) Might need brake fluid

1) To start, you need to remove the tire, unbolt the fender liner, and remove the two nuts from the bottom of the trac pump.

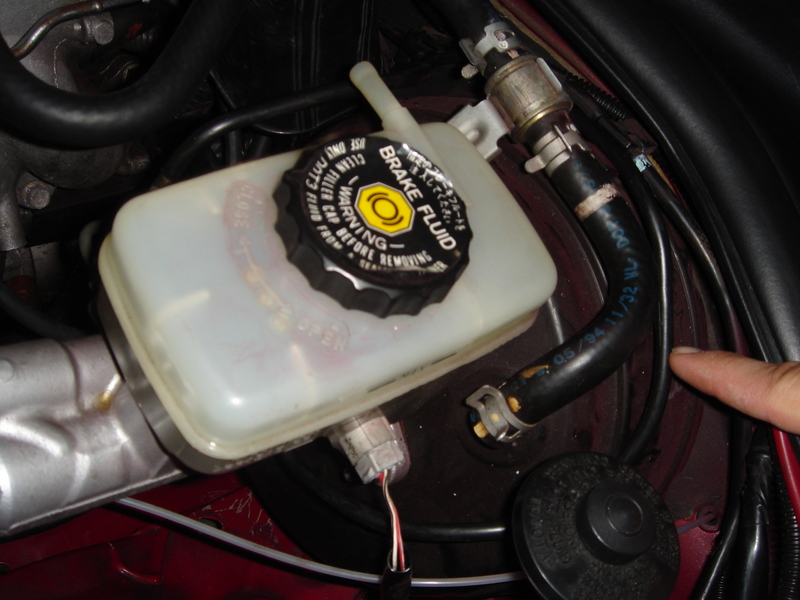

2) The 2 top lines on the TRAC ACTUATOR simply go around to the side of the trac pump and brake fluid reservoir - the brake fluid reservoir line is rubber-capped, and the other line comes off with the trac pump

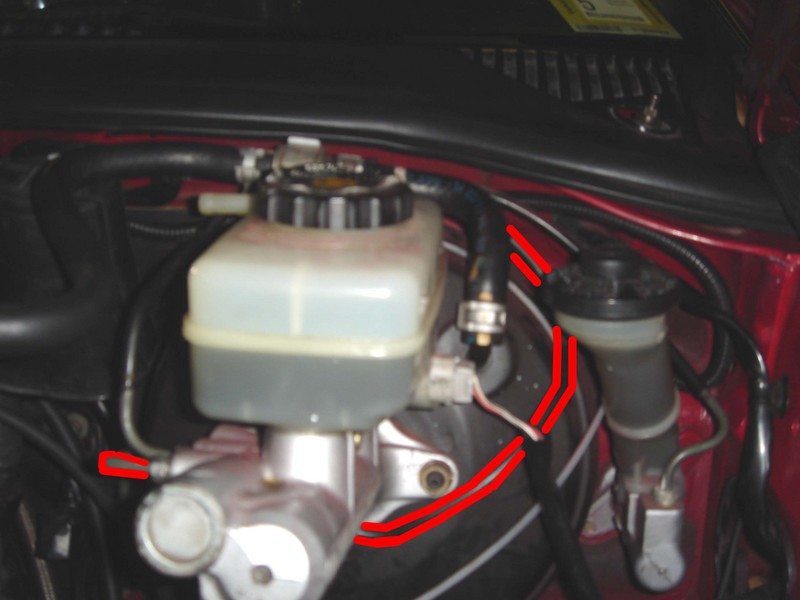

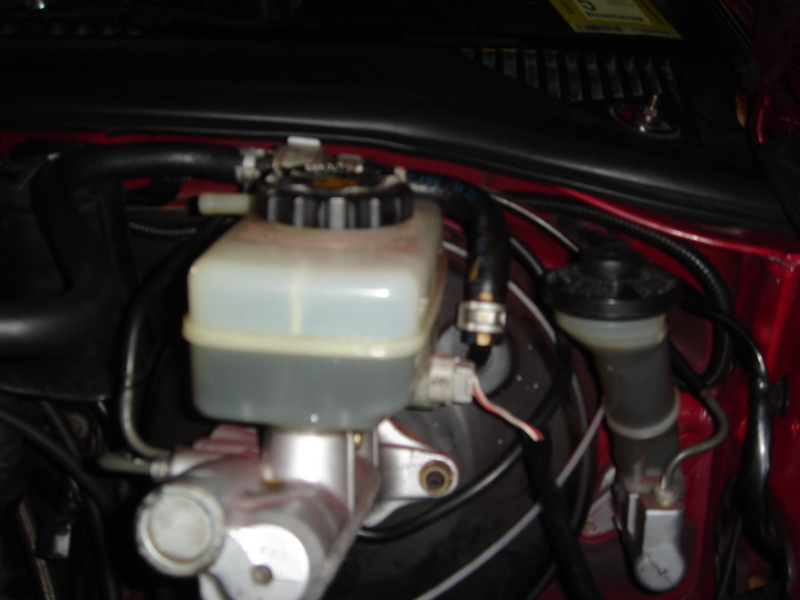

3) The short side line goes to the brake master cylinder, and is simply removed. The small line from the front is hand-bent to go into that side port that you see in the above picture. DO NOT STRIP THE NUT WHEN YOU RE-THREAD IT INTO THE MASTER CYLINDER OR YOU WILL BE BUYING A NEW LINE OR MAKING ONE.

"As far as hand-bending that small tube, first pop it out of that plastic 'holder' that is directly above the master cylinder. Then pull the line down and gently but firmly pull it to give it a slight bend, so that it kind of wraps around close to the driver's side of the master cylinder. This pulling is necessary to get about one more inch on the line so that it can smoothly reach the brake master cylinder. Next, grab the line at it's lowest point with one hand and at the double 90-degree bend near the open fitting with your other hand. With your two hands, rotate the end of the line with the fitting around the front of the master brake cylinder and over onto the passenger side. The fitting starts to the front driver's side of the brake master cylinder and ends up on the driver's side about 1/3 of the way back. Work the line so that the threaded fitting is pointing directly (100% perpendicular in both planes) to the hole in the side of the master brake cylinder. If you work the line with both hands to make sure that all bending&twisting is as gradual as possible, the line will not kink. Just make sure both hands are either bending or twisting simultaneously, with the hand near the threaded fitting twisting/bending doing about twice as much bending/twisting as the hand on the line at the lowest point. Needless to say, stop if you feel any part of the line starting to bend too sharply, but if you are careful I am certain that this will not happen."   -Braddman

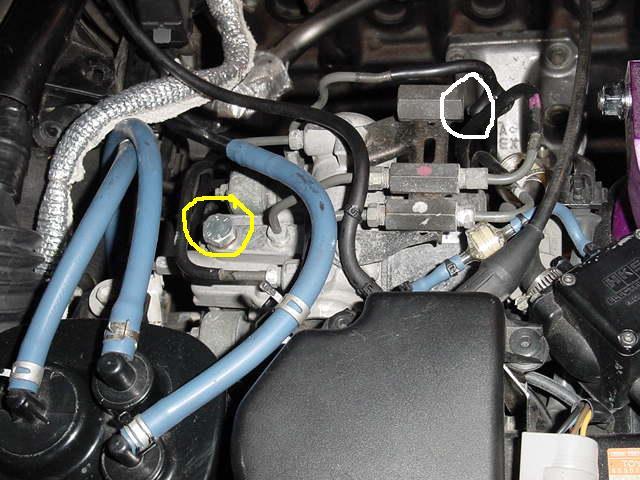

You are going to plug the YELLOW CIRCLE and remove all lines that attach to BOTH sides of the white circle.

4) Get 2x 10K ohm Resistors, 1/2 watt (radio shack, ~$1), insert them in the wiring harness that you unplugged from the trac pump. This will prevent the ABS light from coming on.

5) Bleed the brakes.  Since the lines were open, air got inside them.

When you get done you will have this mass lying on the floor and this nice hole opened up on your fender.
